Hot Water Hero: A Guide to Water Heater Thermostat Fixes

Is Your Thermostat the Trouble?

When your hot water becomes unreliable, water heater thermostat repair is often the solution. The thermostat is your water heater's control center, telling the heating elements when to turn on and off.

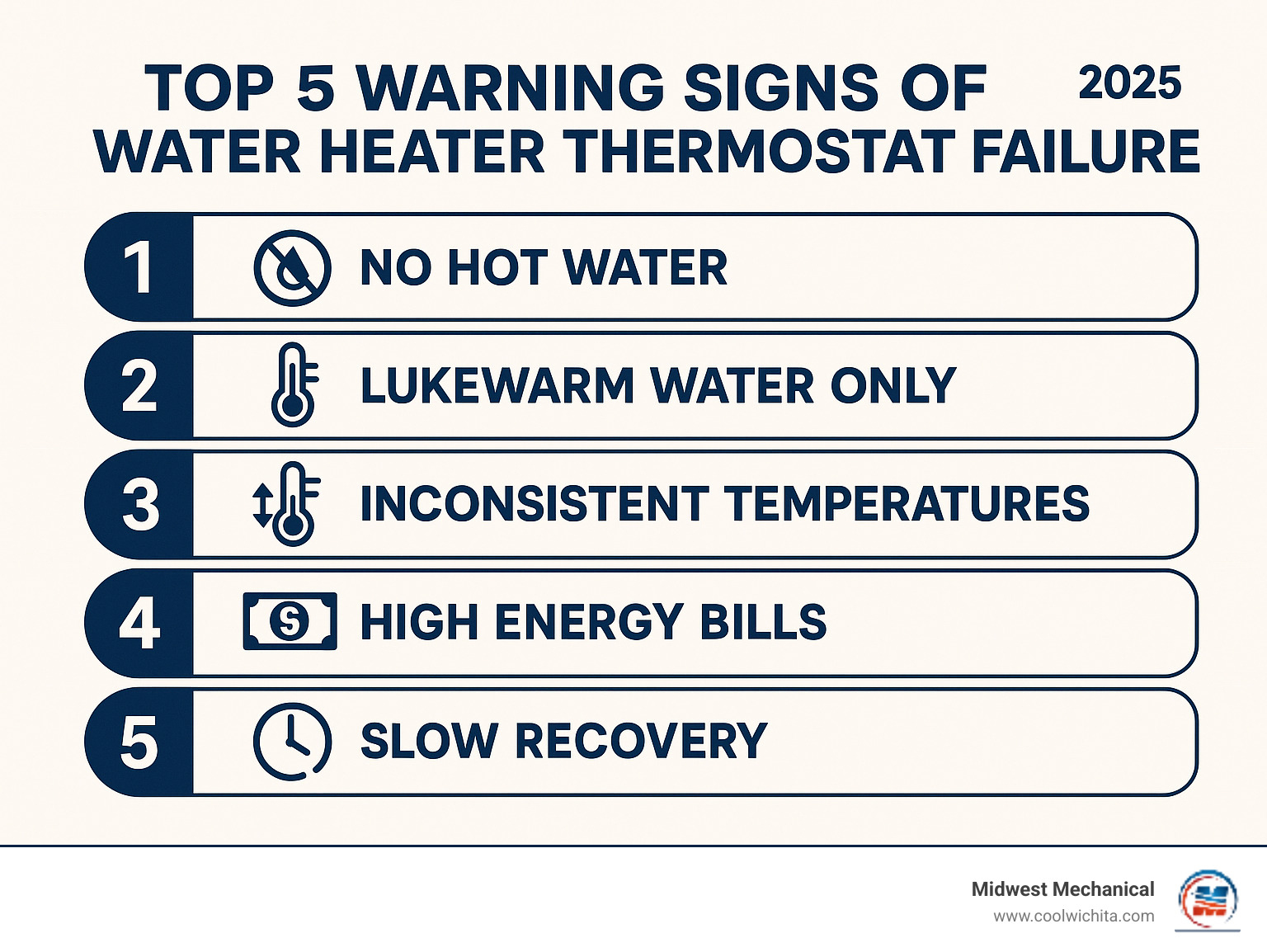

Quick Signs You Need Thermostat Repair:

• No hot water - Complete loss of heated water
• Lukewarm water only - Water never gets properly hot
• Inconsistent temperatures - Hot water that fluctuates wildly
• High energy bills - Inefficient heating cycles waste electricity
• Slow recovery - Takes too long to reheat after use

While many homeowners can handle basic thermostat repairs, gas water heaters and issues like burnt wires require professional help.

Faulty thermostats are a common water heater problem. The good news is that professional thermostat replacement typically costs between $150-$300, a cost-effective repair compared to replacing the entire unit.

Before calling a technician, you can diagnose the issue. If your water gets warm but not hot, the upper thermostat likely needs attention. If you get hot water briefly before it turns cold, the lower thermostat is the probable culprit.

Safety is crucial for any electrical repair. Always turn off power at the circuit breaker and use a voltage tester before touching components.

Understanding Your Water Heater's Thermostat

Your water heater's thermostat is the brain of the system. This crucial component monitors water temperature, telling the unit when to heat. If it fails, you could face cold showers or dangerously scalding water.

The thermostat compares the tank's water temperature to your setting. If the water is too cool, it sends power to the heating elements in electric units or opens the gas valve in gas models. Once the set temperature is reached, it shuts the system off, keeping hot water ready.

Temperature regulation is the thermostat's key job, keeping water in a safe, comfortable range to prevent burns and save energy.

Thermostats don't last forever. Common issues requiring water heater thermostat repair include loose wiring from vibrations, corrosion of internal components, especially in humid areas, and simple age. Sediment buildup can also insulate the thermostat, preventing accurate temperature readings.

Electric vs. Gas Water Heater Thermostats

Electric and gas water heaters control temperature differently, which affects the repair approach.

Electric thermostats are common in dual-element systems with both upper and lower thermostats. The upper thermostat heats the water at the top of the tank first, then passes control to the lower thermostat to heat the rest. This tag-team approach ensures hot water is available quickly while efficiently heating the entire tank.

Gas water heaters use a single gas control valve that combines temperature sensing and gas flow control. This valve works with a thermocouple, a safety device that monitors the pilot light and shuts off gas if the flame goes out. Due to gas safety concerns, issues with these integrated systems often require professional attention.

Single-Element vs. Dual-Element Thermostats

The number of heating elements in your electric water heater determines the number of thermostats.

Single heating element systems use one thermostat and one element. Common in smaller or older models, they are easier to troubleshoot but can be slower to reheat water.

Two heating elements create a more sophisticated system. Most residential units use non-simultaneous operation: the upper thermostat heats first, then switches power to the lower one. This manages the electrical load efficiently. Simultaneous operation, where both elements heat at once, offers faster recovery but is less common in homes.

The hot water capacity of dual-element systems is a clear advantage, maintaining a steady supply of hot water during peak usage. Understanding your system helps you pinpoint problems for a water heater thermostat repair.

Diagnosing and Testing a Faulty Thermostat

If you suspect a thermostat issue is causing your hot water problems, it's important to diagnose it correctly before starting a water heater thermostat repair. The problem could also be a tripped breaker or a failed heating element. A proper diagnosis saves time and money and helps you decide between a DIY fix or calling a professional.

Telltale Signs of a Failing Thermostat

Your water heater will show clear signs when a thermostat is failing:

• No hot water at all: This may indicate a failed thermostat or a tripped high-limit safety switch.
• Water that's too hot: A thermostat that can't sense temperature correctly may allow the heating elements to run continuously, creating a burn risk.
• Fluctuating temperatures: Water temperature that varies wildly during use points to a thermostat problem.
• Slow hot water recovery: If the tank takes too long to reheat, the thermostat may not be signaling the heating elements correctly.
• Increased energy consumption: A faulty thermostat can cause the heater to run unnecessarily, increasing your electric bill.

Essential Safety Precautions Before You Start

Electricity and water are a dangerous mix. Before attempting water heater thermostat repair, safety is essential.

• Turn off the power first: Go to your electrical panel and flip the water heater's double-pole breaker to the "OFF" position.
• Confirm power is off: You'll need a voltage tester to do this job. The pen-style non-contact tester is safe and easy to use. Touch it to the thermostat wires to ensure no power is present.
• Keep your work area dry: Never work with wet hands or stand on a wet surface.
• Wear protective gloves: They protect you from minor shocks and sharp edges.

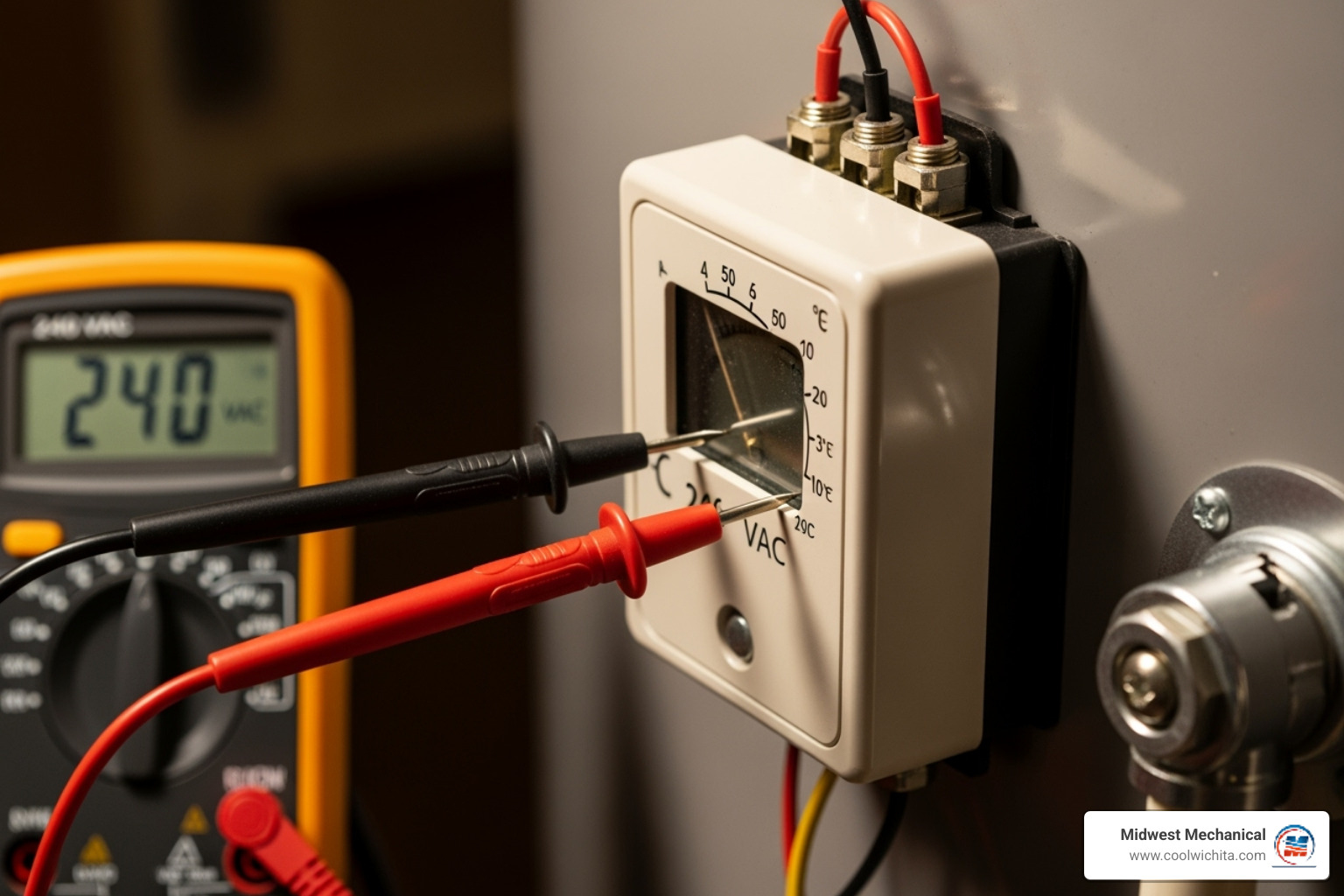

How to Test Your Water Heater Thermostat

With the power off and safety gear on, you can test the thermostat(s).

1. Remove the access panels on the side of the tank and pull back the insulation to reveal the thermostat.
2. Take a photo of the wiring for reference before disconnecting anything. Then, disconnect the wires from the thermostat terminals.
3. Set your multimeter to the "ohms" or "continuity" setting.

4. Touch one probe to each screw terminal. A zero reading or a beep indicates continuity, meaning the thermostat is likely working. An infinite reading (often "OL" or "1") means there is no continuity, and the thermostat is faulty and needs replacement.
5. Check the reset button. If you see a small red button, try pressing it. Sometimes a simple reset is all that's needed. If the high-limit switch has tripped, pressing this button will reset it.

The Complete Guide to Water Heater Thermostat Repair and Replacement

Once you've diagnosed the problem, you can proceed with the water heater thermostat repair or replacement. This guide provides clear, step-by-step instructions. Many thermostat issues can be fixed without new parts, but if a replacement is needed, the process is straightforward with the right tools.

Gathering Your Tools and Materials

Before you begin, gather your tools:

• New thermostat (must match your water heater's brand, model, and voltage)
• Multimeter
• Non-contact voltage tester
• Phillips and flathead screwdrivers
• Needle-nose pliers
• Work gloves
• Smartphone camera (to photograph wiring)

Step-by-Step Water Heater Thermostat Repair

Before replacing the unit, try these simple repairs.

1. Turn off power at the circuit breaker and confirm it's off with your voltage tester.
2. Remove the access panels and insulation to expose the thermostat.
3. Locate the red reset button (sometimes labeled ECO). If it has popped out, press it firmly until it clicks back into place.
4. Inspect all wire connections. Look for loose or corroded terminals.
5. Tighten the terminal screws with a screwdriver to ensure a secure connection.
6. If the water temperature is consistently off, try adjusting the temperature dial. A setting of 120°F is recommended for safety and efficiency.

After these steps, reassemble, restore power, and wait about an hour before testing your hot water.

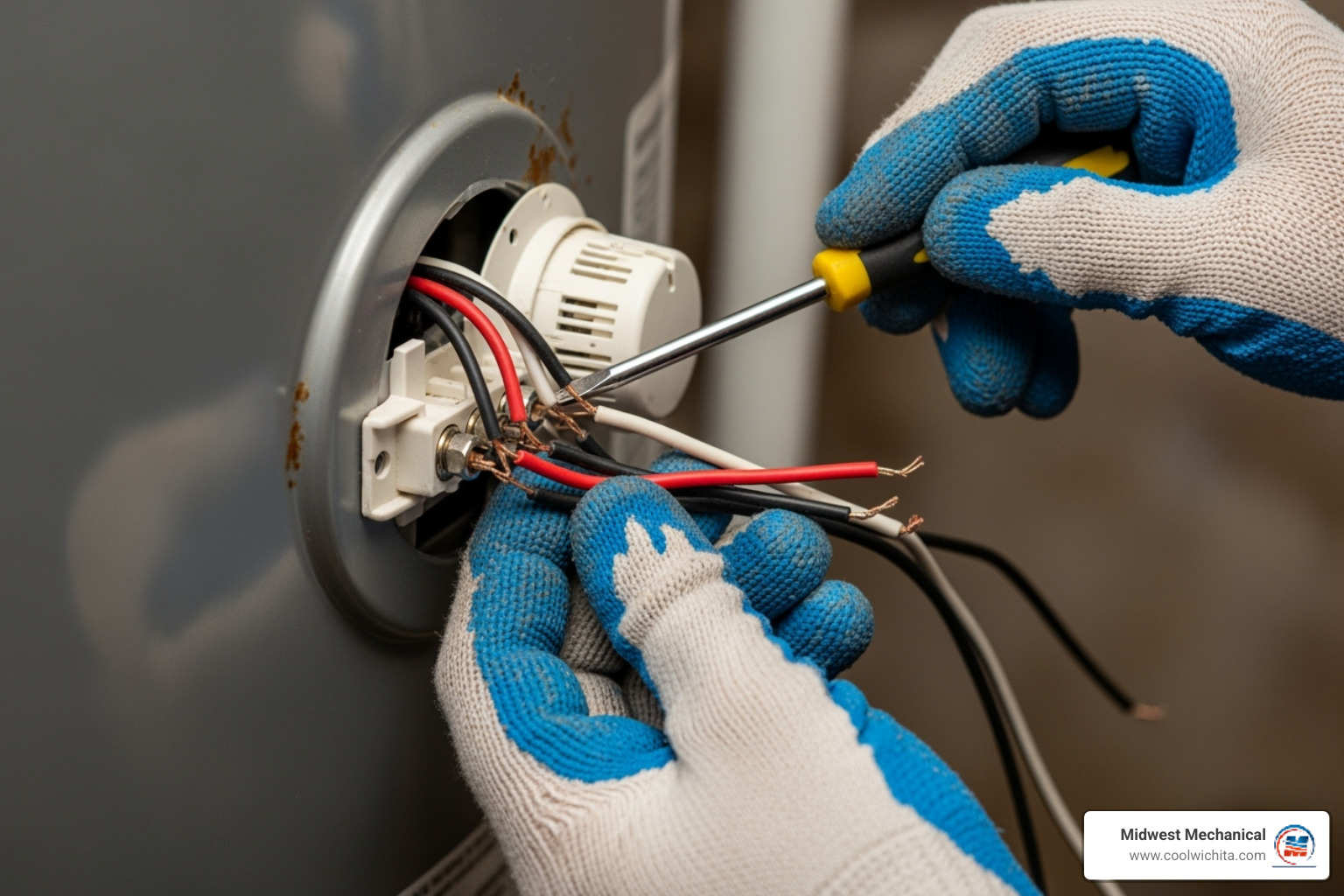

A Guide to Water Heater Thermostat Replacement

If repairs don't work or the thermostat tested faulty, replacement is necessary.

1. Ensure power is off and you've taken a reference photo of the wiring.
2. Disconnect all wires from the old thermostat.
3. Release the old thermostat. Most are held by a metal clip or bracket. Gently pry the bracket to release the thermostat.
4. Install the new thermostat, ensuring it sits completely flat against the tank for accurate temperature sensing.
5. Reconnect all wires exactly as they were in your photo. Ensure all connections are snug and secure to prevent a fire hazard.
6. Make sure the water heater tank is full before restoring power. Energizing an empty tank will destroy the heating elements.
7. Restore power, press any reset buttons on the new thermostat, and allow an hour for the water to heat up.

Congratulations on completing your water heater thermostat repair! For more visual guidance, see this resource: Learn more about replacing an electric water heater thermostat.

DIY vs. Calling a Professional: Making the Right Choice

When facing a thermostat issue, you must decide between a DIY water heater thermostat repair or calling a professional. While DIY can be rewarding, knowing when to call an expert is a smart and safe move.

The Risks of DIY Thermostat Replacement

Attempting a DIY repair comes with significant risks:

• Electrical shock: Water heaters use 240-volt power, which is extremely dangerous. A mistake can be fatal.
• Incorrect wiring: Loose or improper connections are a serious fire hazard.
• Fire hazards: Using the wrong parts or failing to secure connections can lead to overheating and fire.
• Further damage to your unit: An improper installation can damage other components, like the heating elements, leading to more expensive repairs.
• Voiding warranty: Many manufacturers will void your warranty if repairs are not performed by a certified technician.

When It's Best to Call a Professional

In some situations, you should always call a professional:

• Gas water heaters: The thermostat is part of the gas control valve. Working with gas lines is dangerous and should only be done by a licensed pro due to the risk of leaks, fire, or explosion.
• Burnt wires or melting plastic: If you see signs of overheating, stop immediately and call for a professional inspection. This indicates a serious safety issue.
• Leaking tanks: A leaking tank cannot be fixed by thermostat repair and means the entire unit needs to be replaced.
• Water heater is over 10 years old: Investing in repairs for an old unit may not be cost-effective, as other parts are likely to fail soon.
• Uncomfortable with electrical work: If you have any doubts about your ability to perform the repair safely, trust your gut and call a professional. Your safety is the top priority.

At Midwest Mechanical, we prioritize your safety and are ready to handle repairs correctly from the start, giving you peace of mind.

Frequently Asked Questions about Water Heater Thermostats

Here are answers to common questions about water heater thermostat repair.

How do I know if my upper or lower thermostat is bad?

The symptoms can help you pinpoint the problem:

• If you get a short burst of hot water that quickly turns cold, the lower thermostat or element is the likely culprit. The upper element heats the top of the tank, but the lower one fails to heat the rest.
• If your water is only ever lukewarm, the upper thermostat or element is likely the problem. The upper element initiates the heating process, so if it fails, the water never gets fully hot.

Can a bad thermostat cause my energy bills to go up?

Yes, absolutely. A faulty thermostat can cause your water heater to work inefficiently. It might keep the heating elements on even when the water is hot, or it might struggle to reach the set temperature, forcing the elements to run constantly. This wasted energy will lead to a noticeable increase in your utility bills. Replacing a faulty thermostat can often pay for itself in energy savings.

Are water heater thermostats universal?

No, water heater thermostats are not universal. This is a critical point for any DIY repair. You must buy a replacement that matches your water heater's specific brand, model, and type (e.g., dual-element, single-element, gas). The voltage and temperature range must also match the original part. Using the wrong thermostat can lead to improper function or damage. Always take your old thermostat or its part number with you when buying a replacement to ensure you get the correct one.

Conclusion: Restoring Your Home's Comfort

We hope this guide has demystified water heater thermostat repair and given you the confidence to address this common issue, ensuring you always have the hot water you need. Your thermostat is key to a reliable hot water supply, and a faulty one can lead to frustration and cold showers.

The most important lesson? Safety is paramount. Always cut power at the circuit breaker and confirm it's off with a voltage tester before starting any work.

Simple fixes, like pressing the reset button or tightening a loose wire, can often solve the problem without a full replacement. When a new part is needed, thermostats aren't universal and getting the correct one is crucial.

Know your limits. For gas water heaters, signs of electrical damage like burnt wires, or any time you feel uncomfortable with the work, it's time to call a professional. Your safety is more important than any DIY savings.
