The Clicking Furnace: Diagnosing a Bad Ignitor Before Winter

The Chilly Morning Wake-Up Call: When Your Furnace Clicks But Provides No Heat

The September pre-heating season is just around the corner, and understanding The Clicking Furnace: Diagnosing a Bad Ignitor Before Winter is the key to keeping your home warm when the temperature drops. When our team at Midwest Mechanical gets called out to Wichita area homes on crisp fall mornings, we often hear the same story: you walk over to the thermostat, turn the system to 'heat,' and wait for that familiar rush of warm air. Instead, you hear a rapid, continuous clicking sound echoing from the utility room, followed by absolute silence—and blowing cold air.

That repetitive clicking sound is a stressful noise, especially when you are just trying to verify that your system is ready for the colder months ahead. The immediate anxiety of a heating failure right before the winter weather arrives is something many homeowners experience. However, hearing this noise during an early fall test run is actually the best-case scenario. It means you have caught a specific operational failure before you are caught in a freezing house.

The clicking you hear is not just a random broken part rattling around inside the cabinet. It is a very specific, deliberate stage in your heating system's startup sequence that is failing to complete. Catching this issue early gives you ample time to bring in a professional for proper diagnostics. If you need assistance getting your system back on track, reaching out for professional heating services is the smartest first step to ensure your home remains safe and comfortable.

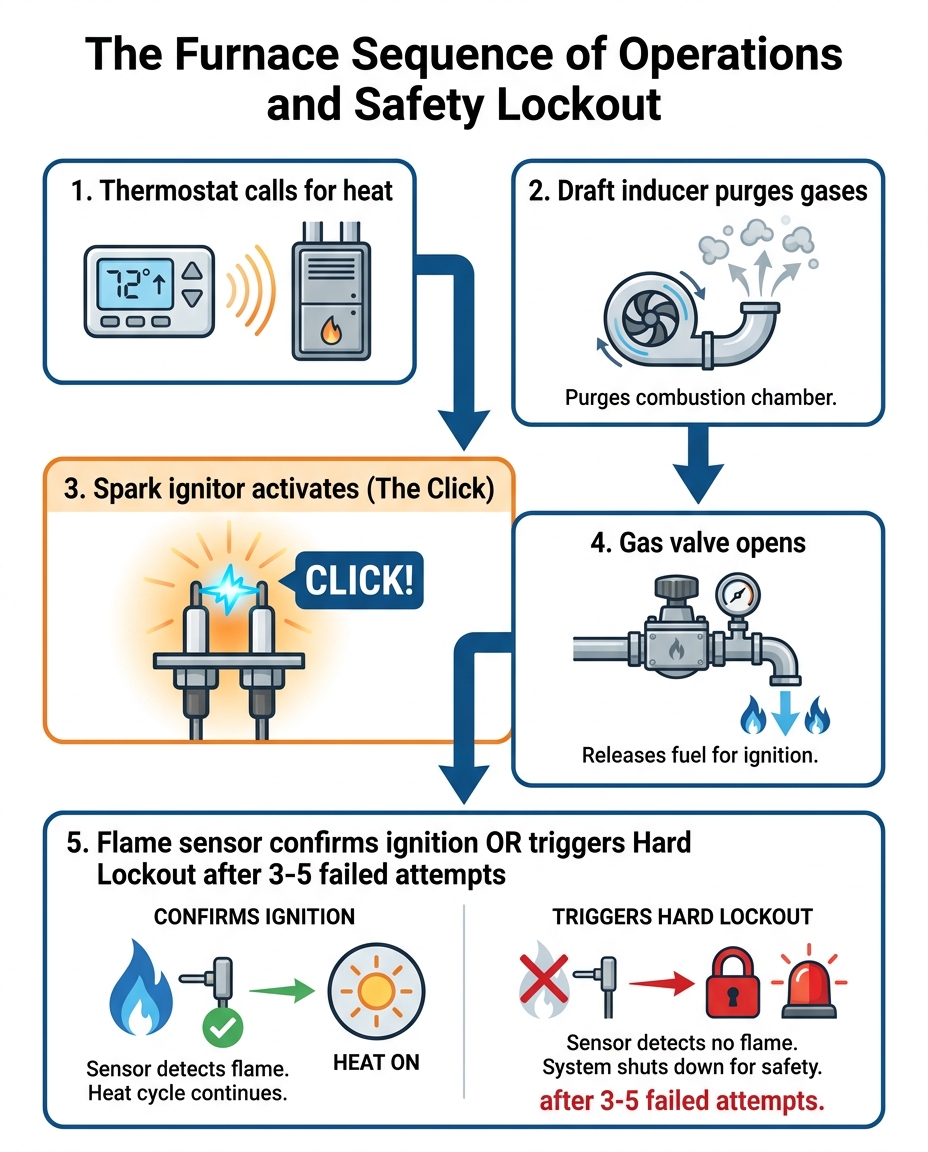

Decoding the Sequence of Operations: What That Clicking Actually Means

To understand why your furnace is clicking, you have to understand how modern heating systems operate. Gas furnaces do not just turn on all at once. They follow a strict, multi-step sequence of operations designed to ensure safe combustion. If any single step in this sequence fails, the system will halt the process immediately. This prevents unburned gas from accumulating inside your home.

When you invest in a heating maintenance plan with us, our technicians closely monitor this exact sequence to ensure every component hands off to the next perfectly. Here is a detailed breakdown of what happens between the moment you adjust the thermostat and the moment you hear that clicking sound.

Step 1: The Thermostat Call and the Draft Inducer Motor

The sequence begins the moment your thermostat registers that the indoor temperature has fallen below your set point. The thermostat sends a low-voltage electrical signal to the furnace control board, calling for heat.

• The Purge Cycle: The very first component to turn on is the draft inducer motor. You will usually hear this as a low humming or whirring sound before any clicking starts.

• Clearing the Chamber: The inducer motor's job is to pull air through the heat exchanger, purging any residual combustion gases from the previous heating cycle out through the exhaust flue.

• Safety Verification: A pressure switch monitors the inducer motor. If the switch detects proper airflow, it signals the control board that it is safe to proceed to the next step.

Step 2: The Ignition Sequence and the "Click"

Once the control board verifies that the draft inducer is successfully venting the system, it initiates the ignition phase. This is where the clicking sound originates.

• The Spark Ignitor: In many modern systems, a spark ignitor activates to light the gas. This component functions very much like the spark plug in your car or the ignitor on a gas BBQ grill. It generates a high-voltage electrical spark, which creates the rapid, continuous clicking noise you hear.

• The Gas Valve Opens: Simultaneously, the control board sends a signal to the gas valve, instructing it to open and release natural gas into the burner assembly.

• The Ignition Attempt: The clicking spark is supposed to ignite the incoming gas, creating the flames that will ultimately heat your home. If the gas fails to light, or if the system fails to detect the flame, the clicking will stop, and the system will shut down.

Why Your Furnace Won't Ignite: Common Culprits Behind the Click

When a furnace wont ignite during the September pre-heating season, the issue usually lies within the combustion components. The clicking tells us that the control board is doing its job and the draft inducer is working, but the critical moment of creating fire is failing. In our experience servicing Wichita homes, there are three primary culprits that can cause this specific failure point.

The Faulty Spark Ignitor

The most direct cause of a clicking furnace that fails to light is a degraded spark ignitor. Over years of use, the constant exposure to extreme heat and electrical current takes a toll on the ignitor's electrode. The ceramic base can crack, or the metal tip can wear down. When this happens, the ignitor may still click, but the spark it produces is too weak or misdirected to actually catch the gas on fire. Because the spark is high-voltage, diagnosing a weak spark requires precise professional testing with specialized electrical meters.

Flame Sensor Malfunctions

Sometimes, the furnace actually does ignite for a brief moment, but the flames shut off almost immediately, followed by more clicking. This points directly to the flame sensor. The flame sensor is a delicate metal rod that sits right in the path of the burner flames. Its only job is to detect whether a fire is actually burning.

Over time, microscopic carbon deposits and soot build up on the sensor rod. In the hundreds of heating tune-ups our team performs each fall, cleaning this carbon off is a standard step because the buildup acts as an insulator, preventing the sensor from feeling the flame. When the sensor fails to register the fire, the control board assumes the gas is pouring into the home unlit, and it slams the gas valve shut as a precaution.

Gas Valve Failures

If the spark ignitor is firing perfectly (clicking) and the flame sensor is clean, the problem might be that there is no fuel to burn. Gas valves rely on internal solenoids that open and close based on electrical signals from the control board. If these solenoids fail, or if there is a blockage in the gas line, the valve will not open. The ignitor will click away, trying to light gas that is simply not there.

• Continuous clicking, no flames ever appear — Likely Component Failure: Spark Ignitor or Gas Valve — What is Happening Inside: The spark is too weak to light the gas, or the gas valve is failing to open and supply fuel.

• Clicking stops, flames appear for 3 seconds, then shut off — Likely Component Failure: Flame Sensor — What is Happening Inside: The gas lights successfully, but the dirty sensor cannot feel the heat, triggering an immediate safety shutdown.

• No clicking, only a humming sound — Likely Component Failure: Draft Inducer or Pressure Switch — What is Happening Inside: The system is failing the safety purge step and refuses to even attempt ignition.

The Safety Lockout: Why the Clicking Eventually Stops

If you stand by your furnace and listen during a failure, you will notice that the clicking does not go on forever. After a few attempts, the system will go completely silent, and the blower fan might run continuously to clear the chamber. This sudden stop is not a sign that the furnace has completely died—it is actually an intentional, highly engineered safety feature doing exactly what it was designed to do.

Modern gas furnaces are programmed to attempt ignition a set number of times—usually between three and five tries. If the system fails to establish and verify a stable flame after these attempts, the control board initiates what is known as a hard lockout.

A hard lockout is a protective state where the furnace refuses to try lighting again for a specific period (often an hour or more), or until a professional resets the system. This mechanism is critical for the safety of Wichita area homes. If the furnace kept pumping gas into the combustion chamber while the ignitor continuously failed to light it, your home could quickly fill with highly dangerous, combustible natural gas.

A crucial warning: Homeowners should never repeatedly flip the breaker or toggle the power switch to force a furnace out of a hard lockout. Bypassing this safety feature forces the system to dump more unburned gas into the heat exchanger, creating a severe fire and explosion hazard. The lockout is your system's way of demanding professional intervention.

The Danger of DIY: Why Ignition Diagnostics Require a Pro

With the abundance of online video tutorials, it can be tempting to try and fix a clicking furnace yourself. However, when it comes to the ignition sequence and combustion components, DIY attempts are incredibly dangerous. You are dealing with high-voltage electricity, combustible natural gas, and carbon monoxide exhaust. A single mistake can lead to gas leaks, serious fire hazards, or voided manufacturer warranties.

Professional HVAC technicians use specialized diagnostic tools that the average homeowner does not possess. A technician will use a multimeter to test the microamp draw of a flame sensor, ensuring it is communicating properly with the control board. They will use a manometer to measure the precise gas pressure entering and exiting the gas valve. This level of precision replaces the dangerous guesswork of DIY repairs.

At Midwest Mechanical, we've been serving the community since 2004, and our NATE-certified technicians have seen firsthand the dangers of bypassed safety lockouts. Just last winter, we helped a local homeowner who realized their furnace was malfunctioning and blowing cold air. Knowing they weren't handy with gas appliances, they reached out to our team for professional help. We quickly diagnosed the ignition problem, explained the repair process clearly without technical jargon, and got the system working perfectly again to safely restore comfort to their home.

If your system is stuck in a lockout, the safest choice is to schedule a furnace diagnostic with certified professionals who know how to handle gas appliances securely.

Timing Matters: The Importance of the Early Fall Test Run

Discovering a clicking furnace is never fun, but discovering it in early fall is a massive advantage. Catching ignition failures during the September pre-heating season is critical because it keeps you ahead of the weather curve. Once the temperature drops significantly, HVAC service schedules fill up rapidly with emergency no-heat calls.

We always remind our customers that Wichita's average first freeze typically arrives in late October. If you wait until that first freezing night to turn on your heating system, a failed spark ignitor means you and your family will be sleeping in a very cold house while waiting for an available appointment. By conducting a test run in September, you have a comfortable buffer of time. If a diagnostic reveals that a specific gas valve or proprietary ignitor needs to be ordered from the manufacturer, you can wait for the part while the weather is still mild.

Making the early fall test run an annual habit is one of the smartest things a homeowner can do. It transforms a potential winter emergency into a minor, scheduled inconvenience. For more insights on why this timing is so beneficial, reading up on finding ignition issues before the first freeze can help you prepare your home effectively.

Stay Ahead of the Cold: Resolve Ignition Issues Today

A furnace that clicks but refuses to provide heat is sending a clear, undeniable signal. The system's built-in safety mechanisms are functioning correctly by halting the process and preventing dangerous gas accumulation. While it is frustrating to experience a heating failure, understanding that the clicking is a symptom of a failed ignition sequence—and not a catastrophic breakdown—can provide peace of mind.

Remember that professional diagnostics are the only safe and reliable way to resolve ignition lockouts. Dealing with gas valves, flame sensors, and high-voltage ignitors requires certified training and specialized tools. As the weather begins to shift in Wichita area homes, taking proactive steps now ensures your comfort later. Do not wait for the winter chill to settle in; address The Clicking Furnace: Diagnosing a Bad Ignitor Before Winter today, and enjoy a warm, safe, and stress-free heating season.

Frequently Asked Questions

Why is my furnace clicking but not turning on?
A clicking furnace usually indicates that the spark ignitor is trying to light the gas, but the ignition sequence is failing. This can be caused by a weak spark, a dirty flame sensor, or a gas valve that is not opening properly. The system safely shuts down to prevent unburned gas from building up.

How do I know if my furnace ignitor is bad?
A bad ignitor will often click continuously without ever producing a flame, or it may fail to click at all if the ceramic base is cracked. Because testing the ignitor requires measuring high-voltage electrical currents, a licensed HVAC technician must diagnose it using a multimeter to confirm if it has failed.

Is a clicking furnace dangerous?
The clicking sound itself is not dangerous; it is actually a sign that your furnace's safety systems are working by attempting to ignite the fuel safely. However, repeatedly forcing the system to reset after it has locked out can be extremely dangerous, as it may cause combustible gas to accumulate in your home.

What causes a furnace lockout?
A furnace lockout is triggered when the control board detects a failure in the sequence of operations, most commonly after 3 to 5 failed ignition attempts. The system shuts down entirely to protect the home from gas leaks or electrical hazards, requiring a professional to address the root cause.

Can I manually light a modern gas furnace?
No, you cannot and should not attempt to manually light a modern gas furnace. Unlike older systems with standing pilot lights, modern furnaces use electronic spark or hot surface ignitors controlled by a computer board. Attempting to light them with a match or lighter is a severe fire hazard.

How many times will a furnace try to ignite before locking out?
Most modern gas furnaces are programmed to attempt ignition between three and five times. If the flame sensor does not detect a steady, safe flame after these attempts, the control board will initiate a hard lockout to ensure the safety of the household.
