Resetting the High-Limit Switch on an Electric Water Heater

Why Did You Suddenly Lose Hot Water?

Are you looking for information on resetting the high-limit switch on an electric water heater after stepping into a freezing morning shower? Have you ever turned the handle expecting a warm stream, only to be met with an icy blast that wakes you up faster than your morning coffee? That sudden, unexpected loss of hot water is incredibly frustrating, but it rarely happens without a specific mechanical reason.

Often, this sudden shutoff traces back to a tripped high-limit safety switch on your water tank. At Midwest Mechanical, our team typically sees this problem popping up more frequently during the early fall transition. As the incoming municipal groundwater gets noticeably colder, your water heater has to work much harder and run for longer cycles to reach your desired temperature, which can expose underlying mechanical flaws.

When you discover the reset button has popped, you face a critical decision. Do you simply push the button and walk away, or do you investigate why it tripped in the first place? Understanding the root cause of the trip is a crucial safety step, not just a nuisance to bypass. If you are dealing with a recurring issue, reaching out for professional plumbing services is the best way to keep your home safe and your water consistently warm.

Understanding the Emergency Cut Off (ECO) Switch

Before you push any buttons, it helps to know exactly what this component does. The high-limit switch, frequently referred to in the industry as the Emergency Cut Off (ECO) switch, is your water heater's ultimate safety net. It is a small, heat-sensitive device designed to monitor the internal temperature of your tank and sever the electrical connection if things get out of hand.

Your tank operates under pressure. If the water inside continues to heat without stopping, it will eventually boil, creating immense steam pressure that could cause a catastrophic tank rupture. To prevent this, the ECO switch is calibrated to trip when internal water temperatures reach the 150°F to 180°F safety cutoff threshold. If you find this button tripped, it means the system successfully did its job and prevented a dangerous boiling event in your home.

When the switch trips, it completely cuts power to the heating elements. If you need water heater repair and replacement, understanding this mechanism helps you communicate the problem clearly to your technician.

Where is the Reset Button Located?

On almost all standard electric models, the reset button is located behind the upper metal access panel on the side of the tank. It is usually a red, square, or circular button situated just above the upper thermostat.

A critical safety warning: This access panel houses live, high-voltage wiring. You must never remove this panel or reach inside without first turning off the dedicated circuit breaker for the water heater at your main electrical panel. Safety must always come before troubleshooting.

How the ECO Communicates with the Thermostat

The ECO switch and the thermostat work as a team, but they have very different jobs. The thermostat is the day-to-day manager, turning the heating elements on when the water cools down and turning them off when the water reaches your set temperature (usually around 120°F).

The ECO switch sits quietly above this process, acting as the emergency failsafe. It does not regulate the daily temperature. It only activates if the standard thermostat fails to turn the power off, allowing the water to climb toward that dangerous 150°F to 180°F safety cutoff threshold. When the ECO steps in, it overrides the thermostat entirely.

The Hidden Dangers of Repeatedly Resetting the Switch

It is incredibly tempting to treat the reset button like a permanent fix. After all, pushing it restores your hot water almost immediately. However, resetting the switch without diagnosing the underlying mechanical failure forces your appliance to run in an inherently unsafe condition.

When you repeatedly bypass the ECO switch, you are ignoring the fact that your water is regularly hitting the 150°F to 180°F safety cutoff threshold. Water at these temperatures presents a severe scalding hazard, especially in homes with young children or elderly family members. Furthermore, if the tank continues to overheat, the pressure relief valve is the only remaining safeguard preventing the tank from bursting.

The physical toll on the switch: Mechanical switches are not designed to be tripped and reset endlessly. Every time the bimetallic disc inside the ECO snaps open under extreme heat, it weakens slightly. Repeated resets can physically degrade the switch.

• Trips once after a power surge — Safety Level: Generally Safe — Recommended Action: Reset once. Monitor the water temperature closely for the next 24 hours.

• Trips a second time in one week — Safety Level: Unsafe — Recommended Action: Leave the breaker off. Call a professional to diagnose the overheating cause.

• Trips immediately upon reset — Safety Level: Highly Dangerous — Recommended Action: Do not attempt to reset again. The switch or thermostat has failed completely.

The general rule of thumb is simple: resetting the button once to see if the trip was a random electrical fluke is common. If it trips a second time, you require immediate professional intervention.

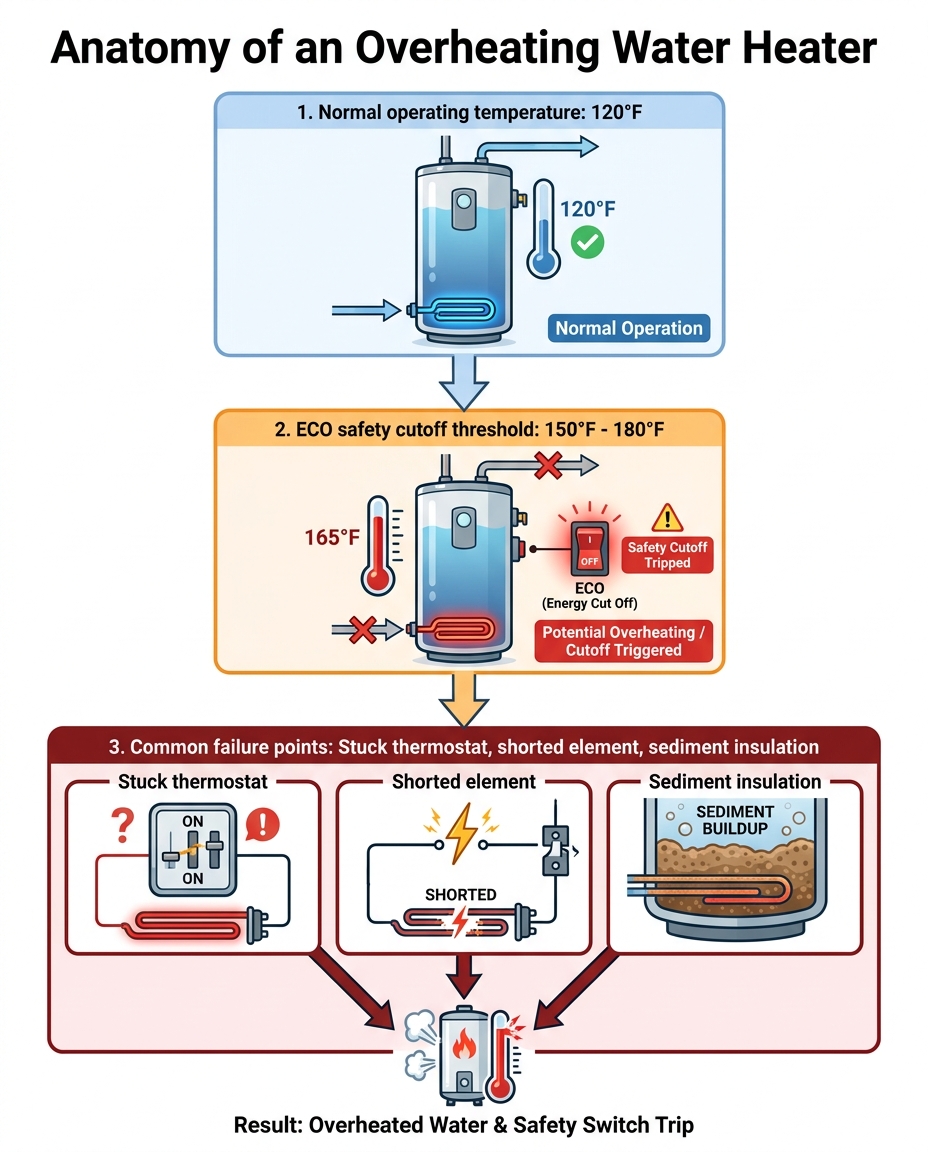

Common Mechanical Failures That Trigger an Overheating Event

If your water heater is constantly reaching the overheating threshold, a mechanical component has failed. The challenge during the early fall transition is that your tank is suddenly working much harder to heat colder incoming water, which quickly exposes these failing parts.

It is vital to note that diagnosing these specific failures requires testing live 240V electrical components. Our seasoned technicians have seen the dangerous aftermath of improper electrical handling, which is why we strictly warn against DIY multimeter testing on live appliances. The risk of severe electrical shock is simply too high. If you are diagnosing upper vs lower element failure, always rely on a licensed professional.

Stuck Thermostats

The most common culprit for an overheating tank is a stuck thermostat. Over years of use, the electrical contacts inside the thermostat open and close thousands of times. Eventually, these contacts can fuse or weld together in the "closed" or "on" position.

When this happens, the thermostat constantly calls for heat, never sending the signal to shut the heating element off. The element continues to bake the water until the ECO switch is forced to intervene.

Shorted Heating Elements

Electric water heaters use internal metal loops, similar to the burners on an electric stove, to heat the water. Over time, the outer metal casing of these elements can crack or split.

When the casing splits, the internal electrical wire comes into direct contact with the water. This creates an electrical short that allows power to flow into the element continuously, completely bypassing the thermostat's commands. The element will heat relentlessly until the high-limit switch cuts the main power.

How Hard Water Sediment Leads to Localized Overheating

Sometimes, the electrical components are working perfectly, but the environment inside the tank is causing the problem. In our years of serving local homeowners and business owners, we've found this to be especially true for those dealing with Wichita's specific municipal water supply, which is known for high hardness levels. Hard water significantly accelerates scale accumulation compared to softer water regions.

The problem with hard water: Hard water contains high concentrations of dissolved minerals, primarily calcium and magnesium. When this water is heated inside your tank, a chemical reaction occurs. The dissolved minerals precipitate out of the water and form solid scale particles that drift to the bottom of the tank.

The cause of overheating: Over months and years, this sediment builds up into a thick, rock-like layer at the bottom of the tank, eventually burying the lower heating element. Our plumbers frequently pull out elements that have been completely encased in this sediment, which acts as a heavy layer of insulation. When the lower element turns on, it struggles to transfer its heat into the water. Instead, the heat gets trapped inside the sediment bed.

The solution: This trapped heat creates localized extreme temperatures right next to the lower thermostat and ECO switch, tricking the sensors and tripping the 150°F to 180°F safety cutoff threshold. The only way to resolve this specific type of overheating is to have the tank professionally flushed and descaled to remove the insulating layer of rock.

When to Skip the DIY Route and Call a Licensed Professional

There is a distinct line between basic homeowner or business owner maintenance and dangerous electrical work. Testing live 240V components inside a wet environment is incredibly dangerous and requires the specialized tools and training of a licensed professional.

If your switch trips immediately after being reset, or if it trips multiple times in a single week, your system is fundamentally unsafe. You must stop troubleshooting, leave the breaker turned off, and call for help. Professional diagnostics can safely pinpoint whether the issue is an inexpensive thermostat component that needs swapping or a heavily corroded tank that requires a full replacement.

Taking action early is critical. You want to resolve these issues during the early fall transition before deep winter arrives, when your household's hot water demands are at their absolute peak. Our Midwest Mechanical licensed plumbers provide fast, reliable emergency water heater diagnostics and repairs for Wichita homeowners and business owners, ensuring these 240V hazards are safely resolved without putting your family at risk.

Proactive Steps to Prevent High-Limit Switch Trips

The best way to deal with a tripped reset button is to prevent the tank from overheating in the first place. Routine care extends the lifespan of your unit, improves energy efficiency, and prevents sudden safety shutoffs that leave you taking cold showers.

Consider adding these steps to your home maintenance routine:

• Schedule an annual tank flush: Having a professional drain and flush your tank removes the hard water sediment that buries the lower element and causes localized overheating.

• Perform visual inspections: Every few months, look at the exterior of your tank and the access panels. Look for signs of rust, moisture, or scorching, which indicate internal problems.

• Test the pressure relief valve: Ensure the T&P valve is functioning correctly so that if the tank ever does overheat, the pressure has a safe way to escape.

• Join a regular service program: Enrolling in a preventative maintenance plan ensures a professional checks your thermostat calibration and element resistance regularly, catching failing parts before they trip the 150°F to 180°F safety cutoff threshold.

Frequently Asked Questions About Water Heater Reset Buttons

Why does my electric water heater keep tripping the reset button?

A water heater keeps tripping the reset button because the internal water temperature is reaching dangerously high levels. This is usually caused by a faulty thermostat that won't turn off, a shorted heating element that continuously draws power, or severe hard water sediment buildup that traps heat against the sensors.

Is it safe to reset a water heater?

It is generally safe to reset the water heater once to see if the trip was caused by a temporary power surge. However, repeated resetting is highly dangerous. Bypassing the switch ignores a critical overheating hazard and forces the tank to operate unsafely.

What causes a water heater to overheat?

Water heaters overheat when the mechanisms that regulate temperature fail. The most frequent causes are thermostats that get stuck in the "on" position or heating element casings that split and short out, causing them to heat the water continuously regardless of the thermostat's settings.

Where is the high-limit switch on a water heater?

The high-limit switch is located behind the upper metal access panel on the side of the tank, directly above the upper thermostat. You must always turn off the circuit breaker to the water heater before opening this panel to avoid exposure to live high-voltage wiring.

Can a bad breaker cause the reset button to trip?

No, a bad breaker at your main electrical panel will not cause the high-limit switch on the tank to trip. The ECO switch monitors internal water temperature, not electrical surges at the panel. If the ECO trips, it is strictly a temperature issue inside the tank.

Restore Your Hot Water Safely Today

Dealing with cold showers during the early fall transition is frustrating, but remember that a tripped high-limit switch is a vital safety mechanism doing exactly what it was designed to do: preventing dangerous, boiling water temperatures in your home. Treating the reset button as a quick fix rather than a warning sign puts your equipment and your household at risk.

When it comes to resetting the high-limit switch on an electric water heater, addressing the root cause is always the right move. Avoid attempting dangerous DIY electrical repairs on live 240V appliances. Instead, schedule a professional diagnostic to identify the faulty thermostat, shorted element, or severe sediment buildup, so you can safely and permanently restore your hot water system.
