Electric Water Heater Troubleshooting: Upper vs Lower Element Failure

Sudden Loss of Hot Water: Decoding Your Water Heater's Symptoms

You turn on the shower tap expecting a comforting blast of heat, but when you are greeted by water that is barely lukewarm, electric water heater troubleshooting: upper vs lower element failure becomes an immediate priority. Dealing with a sudden drop in hot water reliability disrupts your entire day, especially during the busy late-summer, back-to-school transition, leaving you wondering if the whole tank needs to be replaced. Navigating this sudden loss of heat does not have to be a guessing game. By paying attention to a few simple clues, you can figure out exactly what went wrong inside your tank.

Before you worry about replacing the entire unit, know that you have options for reliable water heater services to restore your home's comfort.

Why Observation is Your Best Diagnostic Tool

In our years of helping Wichita homeowners restore their comfort, the team at Midwest Mechanical has found that observation is a homeowner's most powerful tool. Electric water heaters rely on two separate heating elements to maintain your water temperature. Because these elements operate independently, they rarely fail at the exact same time. This is actually good news for homeowners trying to figure out what went wrong. By simply observing the temperature of the water coming out of your faucet and exactly how long that hot water lasts, you can accurately deduce which component has failed.

Understanding these symptoms empowers you to explain the exact issue when calling for professional repair. You do not need specialized tools or a background in electrical engineering to narrow down the problem. You just need to pay attention to your plumbing fixtures.

• Total loss of heat: The water never gets hot, remaining consistently lukewarm or matching the ambient room temperature.

• Short bursts of heat: The water starts off perfectly hot but goes cold after 5 to 10 minutes of use.

• Inconsistent recovery: The tank takes unusually long to heat up after a period of heavy use.

Each of these behaviors points to a specific mechanical failure inside your tank. To understand why your tank behaves this way, we first need to look at how the internal components communicate with each other.

How Electric Water Heater Thermostat Staging Works

Electric water heaters do not power both heating elements simultaneously. Instead, they use a highly specific staged logic to conserve energy and provide hot water as efficiently as possible. If you want to know what to check when your house suddenly loses hot water, you first need to understand the priority system built into your tank's thermostats.

The Priority of the Upper Thermostat

Inside your tank, there is an upper heating element and a lower heating element, each controlled by its own thermostat. The upper thermostat always has priority. When cold water enters the tank, the upper thermostat immediately signals the upper element to turn on. Its sole job is to heat the top third of the tank. This ensures that hot water is immediately available for the plumbing lines, which draw from the top of the unit.

Once that top third of the water reaches your designated temperature setting, the upper thermostat clicks off. But its job is not entirely done. It then acts as a switch, transferring electrical power down to the lower thermostat.

Heating the Rest of the Tank

Only after the upper element has finished its job does the lower element receive power. The lower element is responsible for heating the remaining two-thirds of the incoming cold water at the bottom of the tank. Because of this rigid priority system, a failure in one element produces a very distinct timeline of hot water delivery to your faucets.

• Upper Element — Primary Function: Heats the top third of the tank for immediate use. — Operating Sequence: Operates first. Has priority over the lower element.

• Upper Thermostat — Primary Function: Monitors top temperature and transfers power. — Operating Sequence: Shuts off upper element and sends power downward.

• Lower Element — Primary Function: Heats the bottom two-thirds of the tank. — Operating Sequence: Operates second. Only turns on when the top is hot.

• Lower Thermostat — Primary Function: Monitors bottom temperature to finish the cycle. — Operating Sequence: Shuts off power completely once the whole tank is hot.

This sequential operation is the key to diagnosing your system. If the sequence is broken at any point, the symptoms will clearly reveal where the breakdown occurred.

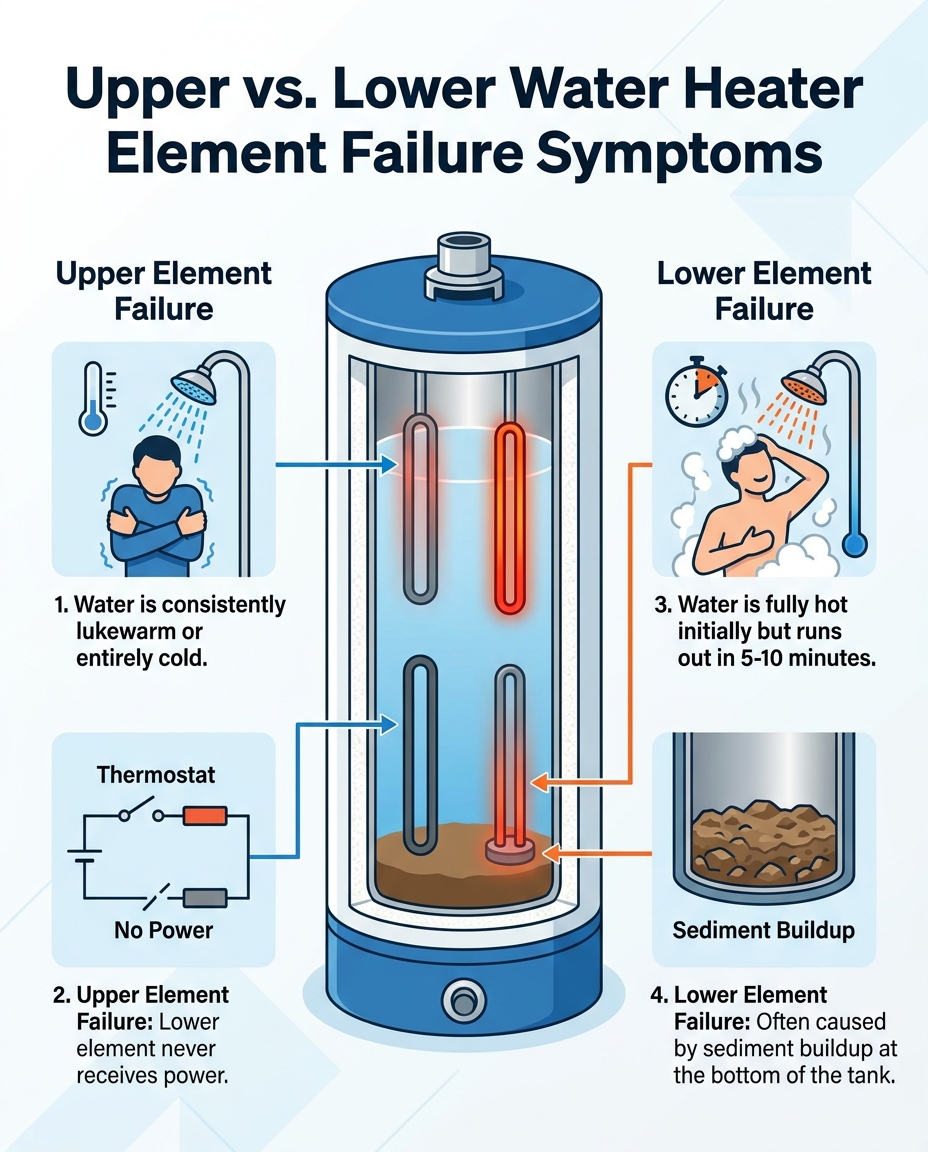

Upper Element Failure: When the Water is Consistently Lukewarm

If your hot water stopped working entirely overnight, the upper element or the upper thermostat is almost certainly the culprit. This is one of the most frustrating problems a homeowner can face, but the mechanics behind it are straightforward.

The Chain Reaction of a Broken Upper Element

Remember that the upper thermostat has absolute priority. If the upper element burns out or fails, it can no longer heat the top third of the tank. However, the upper thermostat does not know the element is broken; it only knows that the water at the top of the tank has not reached the target temperature.

Because the upper thermostat never registers that its job is done, it never clicks over to pass electrical power down to the lower element. The entire system gets stuck in the first phase of the heating cycle. The lower element sits completely idle, waiting for a signal that will never arrive.

Identifying the Symptoms

The result is a tank that completely stops producing hot water. You will experience a very specific set of symptoms:

• Consistently lukewarm water: The water coming out of your tap will either be entirely cold or barely lukewarm from the ambient heat in the room.

• No initial hot burst: Unlike other failures, you will not get even a minute of hot water.

• Continuous power draw: The system may continually try to send power to the broken upper element, wasting energy without producing results.

If you observe that your water is consistently lukewarm and never recovers, regardless of how long you wait, you are dealing with an upper element failure. The system's staging logic has effectively paralyzed the entire tank.

Lower Element Failure: Running Out of Hot Water in Minutes

A lower element failure presents a completely different set of symptoms. While an upper element failure leaves you with no hot water at all, a lower element failure tricks you into thinking everything is fine—until you are halfway through your shower.

The False Sense of Security

When the lower element fails, the upper element still successfully does its job. It heats the top third of the tank to the perfect temperature. The upper thermostat recognizes this success and dutifully transfers electrical power down to the lower thermostat. However, because the lower heating element is burned out, the bottom two-thirds of the tank remains completely cold.

Because your plumbing draws hot water from the top of the tank, you will initially get fully hot water when you turn on the shower or start a load of laundry. This masks the problem for the first few minutes of use.

The 10-Minute Warning Sign

The illusion shatters quickly. Because you only have one-third of a tank of hot water, it runs out incredibly fast. As you use the hot water, cold water rushes into the bottom of the tank through the dip tube. Without a functioning lower element to heat that incoming water, the cold water quickly mixes with the remaining hot water at the top.

The symptom duration is the giveaway: If your water goes cold after just 5 to 10 minutes of use, it strongly indicates a lower element failure. If you consistently start with a hot shower but are left shivering shortly after, the bottom of your tank is no longer doing its job.

Why Late-Summer Water Temperatures Clarify the Diagnosis

Sometimes, homeowners notice a drop in their hot water supply and assume it is just a quirk of the weather. While the changing seasons can impact how your water heater performs, understanding the local climate context helps you rule out environmental factors and confirm a mechanical failure.

Ruling Out the Weather in Wichita

In mid-winter, freezing groundwater entering the tank can naturally reduce the overall duration of your hot water supply. Because the incoming water is so cold, the heater has to work much harder and longer to bring it up to temperature. A slight drop in performance during January might just mean the system is struggling against the elements.

However, during late summer—particularly in August—municipal groundwater temperatures in the Wichita area are at their peak. Because the incoming water from the city lines is already relatively warm, the water heater requires significantly less energy to reach your set temperature.

The Diagnostic Value of Warm Groundwater

This late-summer warmth provides a perfect diagnostic baseline. If you suddenly experience a dramatic drop in hot water duration during these late summer months, it is definitively a mechanical failure rather than a seasonal fluctuation. Your tank should be performing at its absolute best in August. If your hot water is running out in 5 to 10 minutes when the groundwater is warm, you can confidently point to a burned-out lower element rather than a weather-related temperature drop.

The Hidden Role of Hard Water Sediment in Element Burnout

If you have determined that your lower element is failing, you might wonder why this happened in the first place. The lower heating element actually fails far more frequently than the upper element, and the primary culprit is the water itself.

How Minerals Attack Your Heating Element

Our technicians at Midwest Mechanical frequently see the toll our local water takes on plumbing systems, as Wichita is known for having naturally hard water with a high mineral content. As water sits inside your tank and heats up, dissolved minerals—primarily calcium and magnesium—settle out of the water. Gravity pulls these heavy minerals down, causing them to form a thick, crusty layer of sediment on the tank floor.

Because the lower heating element is positioned near the bottom of the tank, it is highly vulnerable to this buildup. Over time, the sediment eventually buries the lower heating element. This mineral crust acts as an insulator, trapping the heat against the element instead of allowing it to transfer into the water. The element is forced to work harder, eventually overheating, splitting, and burning out entirely.

The Importance of Regular Flushing

This is why routine maintenance is so critical for electric water heaters. Regular flushing removes this sediment before it has a chance to calcify around the lower element. By investing in a preventative maintenance plan, you ensure that your tank is drained and cleared of mineral buildup annually, protecting the lower element from premature failure and keeping your system running efficiently.

Safe Diagnostics: Why 240V Electrical Testing Requires a Professional

Once you have observed the symptom duration—whether the water is consistently lukewarm or goes cold after 5 to 10 minutes—you have completed the safest and most important part of the diagnostic process. The next step is knowing when to hand the job over to an expert.

The Hidden Dangers of Online Tutorials

While observing water temperature and duration is perfectly safe for any homeowner, physically testing the electrical elements is not. Electric water heaters operate on 240 volts of electricity. This is double the voltage of a standard wall outlet, posing a severe shock hazard if the access panels are opened without proper isolation and safety protocols.

Many online tutorials recommend using a multimeter to check the elements for continuity. However, this exposes untrained individuals to live wires and high-voltage terminals. A single slip of a testing probe can cause serious injury or further damage to the system's control board.

The Value of Expert Diagnostics

At Midwest Mechanical, we believe in prioritizing homeowner safety above all else. Our commitment to expert, safe diagnostics ensures that you get an accurate repair without risking electrical hazards. A licensed technician uses specialized tools and safety gear to safely confirm whether the issue is a burned-out element, a tripped high-limit switch, or a faulty thermostat. By relying on professional expertise, you avoid the dangers of DIY electrical work and guarantee that the repair is done to code.

Restoring Your Home's Hot Water Supply Safely

Losing your hot water is a major inconvenience, but diagnosing the root cause does not have to be a mystery. By paying attention to whether your water is completely cold from the start or just runs out unusually quickly, you have already completed the first and most critical step of troubleshooting.

Armed with this symptom duration knowledge, you can confidently call in an expert to handle the mechanical repair. You know exactly how the system is behaving, which helps the technician arrive prepared with the right parts and tools. When you are ready to safely replace a failing element and restore consistent hot water to your home, reach out for professional plumbing repair to get your system back on track.

Frequently Asked Questions

How do I know if my upper or lower water heater element is bad?

You can tell which element is bad by observing how long your hot water lasts. If the water is consistently lukewarm or entirely cold, the upper element has likely failed. If the water starts out fully hot but runs out in 5 to 10 minutes, the lower element is usually the culprit. Observing these symptom durations is the safest way to diagnose the issue without electrical testing.

What happens when the bottom element goes out on a water heater?

When the bottom element goes out, the top third of your tank will still heat up normally, but the bottom two-thirds will remain completely cold. This means you will get a normal blast of hot water when you first turn on the tap or shower. However, that limited supply will deplete rapidly, leaving you with cold water after just a few minutes of use.

Will a water heater work with only one element?

A water heater cannot function properly with only one working element due to its staged heating logic. If the upper element fails, the system gets stuck and will not send power to the lower element, resulting in no hot water at all. If the lower element fails, the upper element will work, but you will only receive about a third of your tank's total hot water capacity.

Why do I only get 10 minutes of hot water?

Getting only 10 minutes of hot water is a classic sign of a burned-out lower heating element. The upper element successfully heats the top portion of the tank, giving you that initial hot flow. Because the lower element is broken, the incoming cold water at the bottom of the tank never heats up, causing your supply to run out very quickly.

Is it safe to test an electric water heater element myself?

It is not safe for an untrained homeowner to physically test electric water heater elements. These systems run on 240 volts of electricity, which presents a significant and dangerous shock hazard. While observing water temperatures is perfectly safe, using a multimeter on live wires should always be left to a licensed professional.

Can sediment cause a water heater element to burn out?

Yes, sediment buildup is the leading cause of lower element failure in areas with hard water. Minerals settle at the bottom of the tank and encase the heating element in a hard crust. This insulation forces the element to overheat and eventually burn out, which is why regular tank flushing is a critical maintenance step.
