Where Should a Water Heater Expansion Tank Be Installed?

The Definitive Answer on Expansion Tank Placement

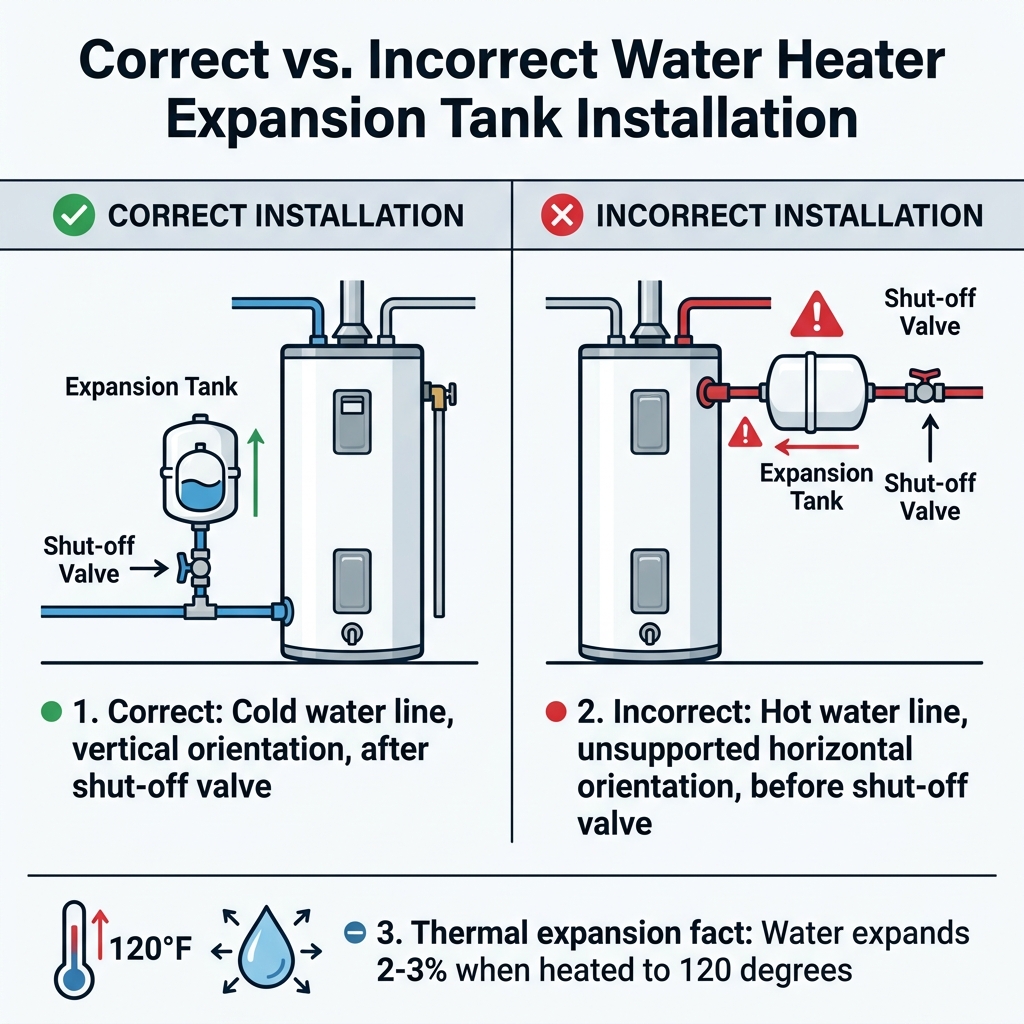

Are you staring at your plumbing setup, wondering exactly where should a water heater expansion tank be installed to ensure safety and meet building codes? The short answer is that an expansion tank must be installed on the cold water supply line, oriented vertically, and placed after the main water shut-off valve but before the water heater itself. If you are researching a cold vs hot water line expansion tank comparison, industry standards definitively require the cold side.

Many homeowners and business owners discover conflicting advice online or notice that their current tank is mounted sideways or on the hot water pipe. These improper setups are surprisingly common, but they carry significant risks, ranging from premature component failure to voided manufacturer warranties. Whether you need comprehensive plumbing services or targeted water heater installation and repair, professional verification is the key to a safe, reliable home plumbing system.

The Physics of Thermal Expansion in Closed Systems

To understand why precise placement is required, you first need to understand the physics of how water behaves when heated. When municipal water enters your home and is heated to standard operating temperatures of 120 to 140 degrees Fahrenheit, it undergoes thermal expansion. On average, water expands by approximately 2% to 3% in volume during this heating process. In a standard 50-gallon water heater, that equates to roughly an extra gallon of water that suddenly needs somewhere to go.

Historically, this expanding water would simply push backward through the supply pipes and re-enter the city water main. However, modern plumbing codes—specifically the Uniform Plumbing Code (UPC) and International Plumbing Code (IPC)—now mandate closed-loop systems. Homes are equipped with check valves, pressure-reducing valves (PRVs), and backflow preventers to keep potentially contaminated household water from flowing back into the public supply. Because the water is trapped in a closed system, thermal expansion creates immense pressure spikes if it lacks a dedicated relief point.

This is where the climate in Wichita area homes and businesses becomes a critical factor. During our cold winters, incoming municipal water temperatures drop significantly. When this near-freezing water enters the tank and is rapidly heated to 140 degrees, the temperature jump is much larger than it would be during the summer months. This extreme temperature delta causes rapid, drastic thermal expansion.

The expansion tank acts as a shock absorber for this pressure. Inside the metal tank is a flexible rubber bladder (often made of butyl rubber) surrounded by a cushion of pressurized air. As water expands, it pushes into the tank, compressing the air cushion and keeping the overall system pressure stable. When you open a hot water faucet, the air cushion pushes the water back into the lines, normalizing the system.

Why the Cold Water Line is the Industry Standard

One of the most persistent myths in residential plumbing is that an expansion tank should be installed on the hot water line because it is dealing with "hot water expansion." This is a fundamental misunderstanding of how pressure equalizes in a closed plumbing system. Because water cannot be compressed, an increase in pressure anywhere in a closed system increases the pressure everywhere equally. Placing the tank on the cold water line absorbs the exact same amount of excess pressure as placing it on the hot water line.

The critical difference comes down to the physical materials used inside the tank. Major expansion tank manufacturers, such as Amtrol and Watts, explicitly state in their installation manuals that their products must be installed on the cold water supply line. Placing the tank on the hot water side violates these specifications and instantly voids the manufacturer's warranty.

The Impact of Heat on Rubber Diaphragms

The internal bladder of an expansion tank is made of specialized rubber. While this rubber is durable, it is not designed to withstand continuous, 24/7 exposure to 120-degree or 140-degree water.

• Accelerated Degradation: Constant exposure to high heat causes the rubber to lose its elasticity, become brittle, and eventually crack.

• Waterlogging: Once the bladder ruptures, the air cushion escapes into the plumbing lines, and the tank fills entirely with water. This is known as a "waterlogged" tank.

• Loss of Protection: A waterlogged tank cannot compress or absorb pressure. Your plumbing system is immediately exposed to massive pressure spikes every time the heater runs, which will eventually force the Temperature and Pressure (T&P) relief valve to start leaking or "weeping" to prevent a tank explosion.

Installing the tank on the cold water line keeps the rubber bladder cool, preserving its flexibility and ensuring it lasts for its intended lifespan.

• Cold Water Line (Standard) — Impact on Tank Bladder: Minimal thermal stress; prolonged lifespan. — Code & Manufacturer Compliance: Fully compliant with UPC/IPC and warranties.

• Hot Water Line (Incorrect) — Impact on Tank Bladder: Constant heat exposure accelerates rubber degradation. — Code & Manufacturer Compliance: Violates manufacturer specs; voids warranty.

Vertical vs. Horizontal Mounting: What Code Dictates

The orientation of the tank is just as crucial as the pipe it sits on. Expansion tanks are engineered to be mounted vertically. Depending on the plumbing layout, they can either hang downward from the pipe or stand upright above it, provided they are properly supported.

Horizontal mounting is highly discouraged and often dangerous for two primary mechanical reasons:

1. Trapped Air Pockets: When a tank is mounted horizontally, air bubbles from the municipal water supply can become trapped on the water side of the rubber bladder. This trapped air can cause internal corrosion and reduce the functional capacity of the tank, preventing it from properly absorbing thermal expansion.

2. Severe Weight Hazards: A standard two-gallon expansion tank weighs about five pounds when empty. However, if the internal bladder fails and the tank becomes waterlogged, it will hold roughly 16 pounds of water, bringing the total weight to over 20 pounds. Hanging 20 pounds horizontally off a 3/4-inch threaded copper or PEX fitting creates an enormous amount of torque. Over time, this leverage can cause the pipe threads to sheer off entirely, resulting in a catastrophic flood in your home.

While a few specific tank models are technically rated for horizontal installation, they require heavy-duty, code-compliant support brackets that cradle the weight of the tank and secure it to a wall or joist. In most Wichita area homes and businesses where tanks are found mounted horizontally, these specialized brackets are entirely missing, leaving the home vulnerable to sudden pipe failure.

Proper Distance from the Water Heater and Valve Positioning

Beyond being on the correct line and facing the correct direction, the exact position of the tank in relation to other plumbing valves is critical for system safety. The tank must be installed on the cold water line between the water heater and the main water shut-off valve.

Here is why valve placement matters:

• Never before the shut-off valve: If the expansion tank is installed upstream of the cold water shut-off valve, closing that valve isolates the water heater from the expansion tank. If the water heater continues to run while isolated, the thermal expansion has nowhere to go, creating a highly dangerous over-pressurization scenario.

• Ideal distance: Manufacturers generally recommend placing the tank 18 to 36 inches away from the water heater's cold water inlet. This keeps the tank close enough to effectively absorb pressure without exposing it to the ambient radiant heat generated by the water heater's exhaust flue or burner assembly.

• Maintenance access: Proper placement ensures that a professional plumber can easily access the tank to check its internal air charge during annual tune-ups. It is highly recommended to have a professional test the air pressure in your water heater expansion tank to ensure it matches your home's incoming municipal water pressure exactly.

The Hidden Risks of Improper Installation

Because expansion tanks look like simple metal cylinders, they are frequently the victims of improper DIY installations or rushed work by unlicensed handymen. However, the hidden risks of a non-compliant setup are severe.

First and foremost, incorrect placement directly violates manufacturer installation instructions. If a water heater fails prematurely due to stress from a waterlogged, improperly installed expansion tank, the manufacturer will almost certainly deny the warranty claim on both the tank and the water heater itself. You could be left paying out of pocket for an entirely new system.

Furthermore, an unsupported horizontal tank or a tank degraded by hot water placement is a ticking time bomb for water damage. If the threaded connection snaps under the weight of a waterlogged tank, you will have a fully pressurized municipal water line dumping unchecked into your basement or utility closet.

This is why Midwest Mechanical is strictly committed to code-compliant, professional plumbing installations. Our experts ensure that every single component, from the pressure-reducing valve to the expansion tank, meets rigid UPC/IPC standards. We don't just thread a tank onto a pipe; we verify incoming municipal pressure, match the tank's pre-charge, ensure proper structural support, and protect your home from catastrophic leaks. Having a licensed professional verify your setup during a routine plumbing maintenance visit—especially during the September pre-heating season before winter weather hits—is the smartest way to protect your investment.

Frequently Asked Questions About Expansion Tank Installation

Does an expansion tank have to be on the cold water line?

Yes, industry standards and manufacturer warranties strictly require cold water line installation. Placing the tank on the cold side prevents the internal rubber bladder from suffering heat damage. Because the plumbing system is a closed loop, placing it on the cold side still perfectly absorbs the pressure generated by the hot water tank.

Can a water heater expansion tank be installed horizontally?

Generally no, unless the specific tank is explicitly rated for horizontal use and is supported by heavy-duty, specialized brackets. Standard vertical installation prevents immense weight stress on your pipe threads. If a horizontally mounted tank fails and fills with water, the sheer weight can snap the pipe and flood your home.

How far should an expansion tank be from the water heater?

Typically, an expansion tank should be installed 18 to 36 inches away from the water heater on the cold water line. This distance ensures it is safely positioned after the main shut-off valve but kept far enough away to avoid ambient heat damage from the water heater's exhaust or burner.

What happens if an expansion tank is on the hot water side?

The continuous high heat from the hot water line degrades the rubber diaphragm inside the tank much faster than normal. This leads to premature failure, a waterlogged tank that can no longer absorb pressure, and an instantly voided manufacturer warranty.

Is an expansion tank required by plumbing code?

Yes, both the Uniform Plumbing Code (UPC) and International Plumbing Code (IPC) require thermal expansion control on closed plumbing systems. If your home has a check valve, pressure-reducing valve, or backflow preventer on the incoming water main, an expansion tank is legally required to prevent dangerous pressure spikes.

Verify Your Plumbing System Before Winter

Correct placement and proper orientation of your expansion tank are non-negotiable elements of home plumbing safety. Whether you are dealing with a cold vs hot water line expansion tank debate or simply wondering why your tank is hanging sideways, ignoring an improper setup can lead to voided warranties and massive water damage.

As we enter the September pre-heating season, now is the ideal time to check your current setup against these industry standards. Don't wait for a waterlogged tank to snap a pipe or trigger your relief valve. Schedule a professional inspection today to verify that your plumbing system is fully code-compliant, properly pressurized, and ready to safely handle the colder months ahead.
